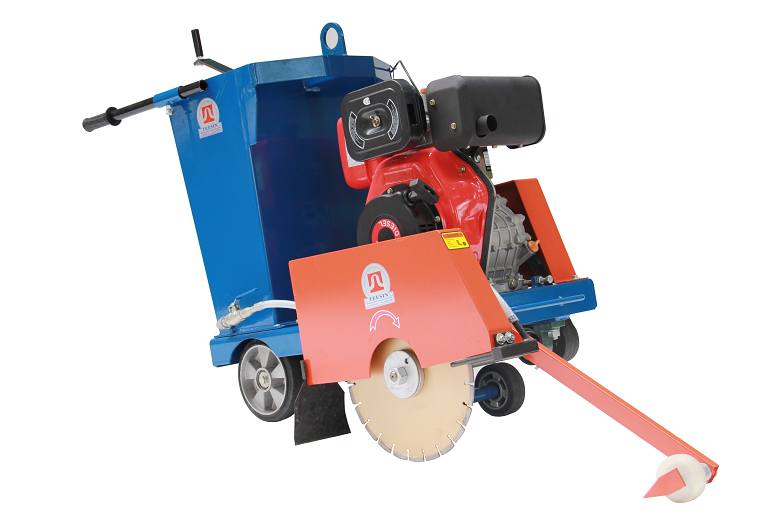

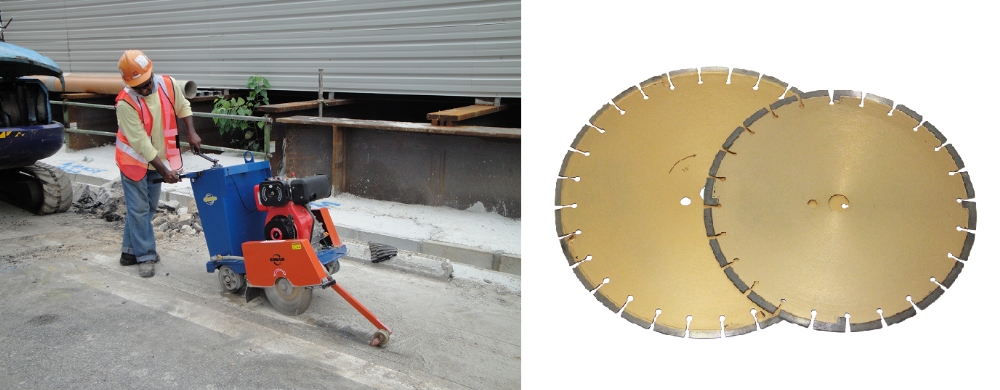

A walk-behind concrete saw is a power tool used for cutting concrete, masonry, brick, asphalt, tile, and other solid materials. It may be powered by gasoline engine, diesel engine or electric motors. The saw blades used on concrete saws are often diamond saw blades to cut concrete, asphalt, stone, etc. The significant friction generated in cutting hard substances like concrete usually requires the blades to be cooled to prolong their life and reduce dust.
Product description
Product parameters
Product features
Model | Operating Weight | General Dimen | Blade Size | Max Cut Depth | Driver Shaft Speed | Cutter Shaft Speed | Arbor (max) | Power Source |
kg | mm | mm/inch | mm/inch | r.p.m | r.p.m | mm | ||
TC3-F400D | 165 |
H: 1200 B: 1500 W: 560 |
350/14" 450/18" |
100/4" 150/6" |
3600 | 2000-2200 | 27 | A.C.E DIESEL F220 |
Product description
Product parameters
Product features
1. Full weld joint with powder coating on thick plate used to fabricate robust chassis
2. Fully adjustable rear lever-lock depth controls
3. Full size, drop down cutting guide with nylon roller
4. Chain driven axel wheel to allow ease of namuvering machine forward and backward while cutting.
5. 50litre water tank mounted on machine to allow water feed directly onto the blade
