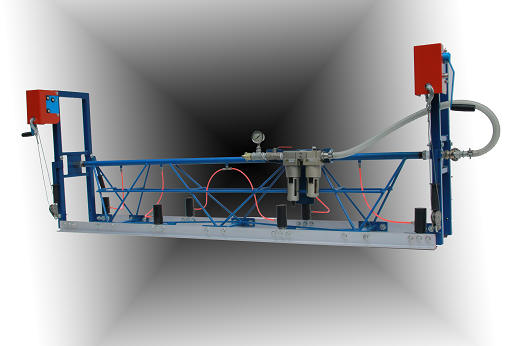

Ultra Flat Screed

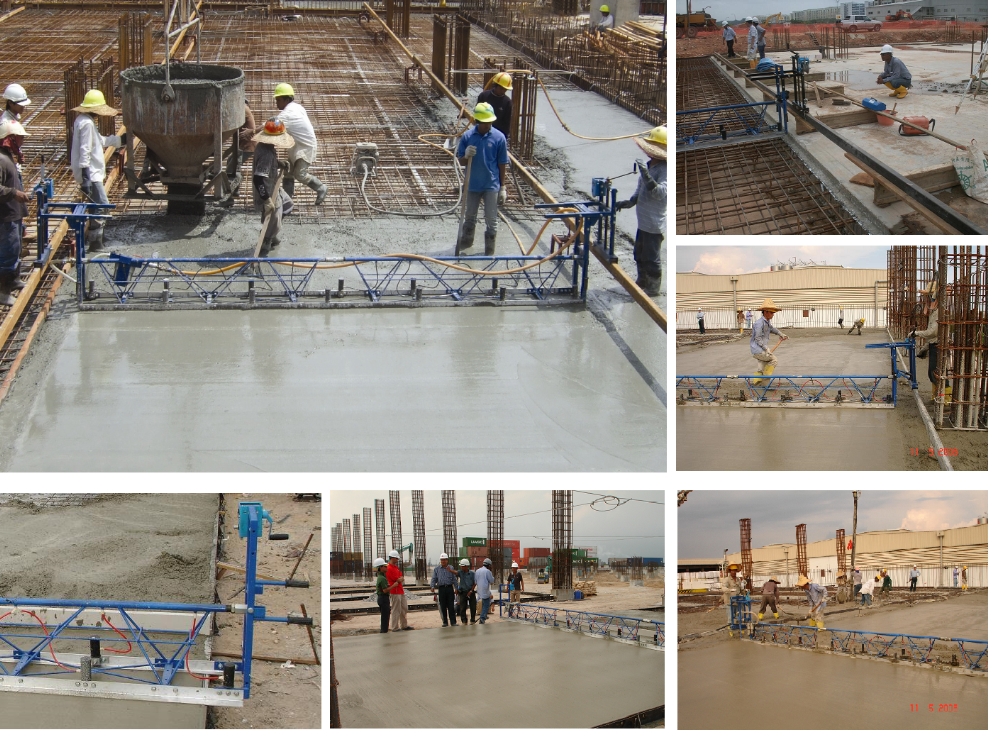

Teesin Ultra-Flat Screed can be configured to suit your industrial or commercial floors of different width. This machine comes with lightweight truss with double extruded aluminum alloy blades that enable faster placements of concrete with high level of flatness. Vibration is spread evenly on the machine blades to ensure a well-compacted concrete finish with one pass.
Product description
Product parameters
Product features
Ultra Flat Screed
Necessary Item
| Item | Weight (kg) |
| Pneumatic System | 5.2 |
| Left End Frame | 8.4 |
| Right End Frame | 8.4 |
| Winch | 5 |
| Model | Total Length | Truss 1 | Truss 2 |
Piston Vibrator |
Air Flow |
Total Weight |
Power Source |
| m | QTY | QTY | QTY | cm3 | kg | Manual/Pneumatic | |
| C3 (2/0) | 3 | 2 | 0 | 8 | 36 | 86 | Manual/Pneumatic |
| C3.75 (1/1) | 3.75 | 1 | 1 | 10 | 45 | 101 | Manual/Pneumatic |
| C4.5 (0/2) | 4.5 | 0 | 2 | 12 | 54 | 116 | Manual/Pneumatic |
| C4.5 (3/0) | 4.5 | 3 | 0 | 12 | 54 | 113 | Manual/Pneumatic |
| C5.25 (2/1) | 5.25 | 2 | 1 | 14 | 63 | 128 | Manual/Pneumatic |
| C6 (1/2) | 6 | 1 | 2 | 16 | 72 | 143 | Manual/Pneumatic |
| C6 (4/0) | 6 | 4 | 0 | 16 | 72 | 140 | Manual/Pneumatic |
| C6.75 (0/3) | 6.75 | 0 | 3 | 18 | 81 | 158 | Manual/Pneumatic |
| C6.75 (3/1) | 6.75 | 3 | 1 | 18 | 81 | 155 | Manual/Pneumatic |
| C7.5 (2/2) | 7.5 | 2 | 2 | 20 | 90 | 170 | Manual/Pneumatic |
| C7.5 (5/0) | 7.5 | 5 | 0 | 20 | 90 | 167 | Manual/Pneumatic |
| C8.25 (1/3) | 8.25 | 1 | 3 | 22 | 99 | 185 | Manual/Pneumatic |
| C8.25 (4/1) | 8.25 | 4 | 1 | 22 | 99 | 182 | Manual/Pneumatic |
| C9 (0/4) | 9 | 0 | 4 | 24 | 108 | 200 | Manual/Pneumatic |
| C9 (3/2) | 9 | 3 | 2 | 24 | 108 | 197 | Manual/Pneumatic |
| C9 (6/0) | 9 | 6 | 0 | 24 | 108 | 194 | Manual/Pneumatic |
| C9.75 (2/3) | 9.75 | 2 | 3 | 26 | 117 | 212 | Manual/Pneumatic |
| C9.75 (5/1) | 9.75 | 5 | 1 | 26 | 117 | 209 | Manual/Pneumatic |
| C10.5 (1/4) | 10.5 | 1 | 4 | 28 | 126 | 227 | Manual/Pneumatic |
| C10.5 (4/2) | 10.5 | 4 | 2 | 28 | 126 | 224 | Manual/Pneumatic |
| C11.3 (3/3) | 11.3 | 3 | 3 | 30 | 135 | 239 | Manual/Pneumatic |
| C11.3 (6/1) | 11.3 | 6 | 1 | 30 | 135 | 236 | Manual/Pneumatic |
| C12 (2/4) | 12 | 2 | 4 | 32 | 144 | 254 | Manual/Pneumatic |
| C12 (5/2) | 12 | 5 | 2 | 32 | 144 | 251 | Manual/Pneumatic |
